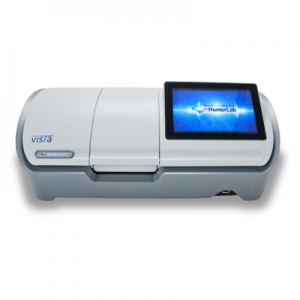

Vista ER

Sphere Diameter: 76 mm (3 in)

Sphere Coating: Spectralon™

Spectral Range: 400 nm – 700 nm

Wavelength Resolution: < 3 nm

Effective Bandwidth: 10 nm equivalent triangular

Reporting Interval: 10 nm

Photometric Range: 0 to 150 %

Photometric Resolution: 0.003 % (0.01 % reported)

Light Source: Full spectrum LED array

Flashes per Measurement: 4 flashes

LED Life: 5 years typical

Colorimetric Repeatability (30 readings max): < 0.02 ∆E* on air

Spectral Repeatability: Standard deviation within 0.1 %

Inter-instrument Agreement:

• ∆E* (D65/10) < 0.15 (Avg) (Transmission Filter Set)
• ∆E* (D65/10) < 0.25 (Max) (Transmission Filter Set)
• ± 0.30% at 10% TH (HAZE)

Data Views: EZ View, Color Data Table, Color Plot, Spectral Data, Spectral Plot, Trend Plot

Other Features: Pass/Fail color indication, time and date stamp, auto-naming, auto-saving, data backup and recovery

Indices and Metrics: APHA/PtCo/Hazen, ADMI, Saybolt, Gardner, ASTM D1500, Iodine, ICUMSA, EBC, ASBC, ASBC Turbidity, Chinese Acid Wash, Lovibond® RYBN, AOCS RY, FAC, YI E313 Yellowness, YI D1925, WI E313, CIE Y Transmission, US Pharmacopeia, Japanese Pharmacopeia, Chinese Pharmacopeia, EU Pharmacopeia, EP Opalescence, Haze, NTU

Color Scales: CIE L*a*b*, Hunter Lab, CIE L*C*h, CIE Yxy, CIE XYZ

Color Difference Scales: ΔL*a*b*, ΔLab, ΔL*C*h, ΔYxy, ΔXYZ

Color Difference Indices: ΔE*, ΔE, ΔE CMC, and ΔE 2000

Data Storage: 8 GB (> 1 million data records）

Illuminants: D65, C, A, D50, D55, D75, F02, F07, F11, TL84, ULT30, ULT35

Observers: 2° and 10°

Languages: English, Japanese, and Simplified Chinese

Display: Touch screen, High resolution 1280×800

External Software: Compatible with HunterLab EasyMatch QC and EasyMatch QC-Electronic Records Quality Control Software

Touch screen, high resolution 1280×800

USB OTG: Connectivity to printer, keyboard, mouse

Front Panel USB: 2.0 bidirectional, data export/import via thumb drive

Ethernet RJ45: Print directly to standalone or network printers, Email directly from the instrument, Stream data to LIMS and SPC systems

Remote Access Support: Enabled via internet-based support too

Dimensions:

• Height: 177.8 mm (7.0 in.)
• Width: 485.8 mm (19.125 in.)
• Depth: 228.6 mm (9.0 in.)
• Weight: 6.35 kg (14.0 lbs)

Transmission Compartment:

• Height: 108.0 mm (4.25 in.)*
• Width: 101.6 mm (4.0 in.)
• Depth: 187.3 mm (7.375 in.) with cover on*

*Removable cover opens compartment on three sides (top, front, back) to accomodate large samples

Base to Measurement Port Distance: 63.5 mm (2.5 in.) Power

Requirements: 100 to 240 VAC, 47 to 63 Hz, 60 W

Operating Environment: 10 to 40° C (50 to 104º F), 10 % to 90 % RH, noncondensing

Storage Environment: -21 to 66° C (-5 to 150º F), 10 % to 90 % RH, noncondensing

Standard Accessories:

• Didymium diagnostic filter
• Certificate of compliance
• Power supply
• VISTA Quick Start Guide
• Stylus
• USB Flash Drive
• Cleaning Cloth
