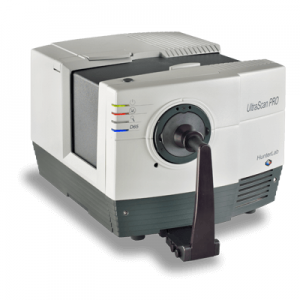

UltraScan PRO

Color Meter For Measuring Reflected Color

UltraScan PRO is an instrument that measures both reflected and transmitted color with the highest accuracy, following CIE, ASTM, and USP guidelines. Its exceptional 5 nm optical resolution makes it capable of precisely measuring colors of colorants with distinct cutoff characteristics.

Measures reflectance & transmittance color as well as spectral reflectance, spectral transmittance and transmission haze

5 nm optical resolution and reporting interval

Three reflectance measurement areas

Exceptional inter-instrument agreement

Automated UV calibration and control

Large transmission compartment open on three sides

Includes EasyMatch QC software

UltraScan Pro Spectrophotometer - Product Specifications

Measurement
Performance
Physical/Electrical

Measurement Principle: Dual-beam spectrophotometer

Geometry: Diffuse d/8° reflectance, d/8° total transmission, d/0° regular transmission

Spectrophotometer: Two polychromators, each with a 512 element diode array and a high resolution, concave holographic grating

Sphere Diameter: 152 mm (6 in.)

Sphere Coating: Spectraflect™ for sphere, Duraflect™ for port plate and specular exclusion door

Port Size/Measured Area:

Port Diameter/View Diameter in RSIN/RSEX reflectance modes
- Large Area View (LAV): 25 mm (1 in) illuminated/19 mm (0.75 in) measured
- Medium Area View (MAV): 13 mm (0.5 in) illuminated/9 mm (0.35 in) measured
- Small Area View (SAV): 7 mm (0.25 in) illuminated/4 mm (0.16 in) measured
Port Diameter/View Diameter in TTRAN transmittance modes
- Large Area View (LAV): 25 mm (1 in) illuminated/17.4 mm (0.69 in) measured
- Medium Area View (MAV): 25 mm (1 in) illuminated/13.2 mm (0.52 in) measured
- Small Area View (SAV): 25 mm (1 in) illuminated/11.6 mm (0.46 in) measured
Port Diameter/View Diameter in RTRAN transmittance mode where lens is field stop for all areas of view
- Large Area View (LAV): 17 mm (0.67 in) illuminated/17 mm (0.67 in) measured
- Medium Area View (MAV): 17 mm (0.67 in) illuminated/17 mm (0.67 in) measured
- Small Area View (SAV): 17 mm (0.67 in) illuminated/17 mm (0.67 in) measured

Lens Switching for LAV/MAV/SAV: Automatic

Specular Component: Automated Included (RSIN) or Excluded (RSEX) in reflectance

Spectral Range: 350 nm – 1050 nm full CIE visible range plus NIR

Wavelength Resolution: < 2 nm

Effective Bandwidth: 5 nm equivalent triangular

Reporting Interval: 5 nm

Photometric Range: 0-150 %

Light Source: Pulsed Xenon lamps (3), calibrated and controlled in the UV range

Automatic UV Control:

400 nm cutoff filter for UV control and UV exclusion
Optional 420 nm cutoff filter for UV exclusion

Transmission Modes: Total (TTRAN) and Regular (RTRAN)

Transmission Compartment:

Large and open on 3 sides
10.2 cm D X 35.6 cm W x 16.5 cm H (4 in. D x 14 in. W x 6.5 in. H)

Standards Conformance

Reflectance: CIE 15:2004, ISO 7724/1, ASTM E1164, DIN 5033, Teil 7 and JIS Z 8722 Condition C
Transmittance: CIE 15:2004, ASTM E1164, DIN 5033 Teil 7 and JIS Z 8722 Condition E, G Haze conformance per ASTM D1003 Section 8. Procedure B Spectrophotometer

Standards Traceability: Instrument standard assignment in accordance with National Institute of Standards and Technology (NIST) following practices described in CIE Publication 44 and ASTM E259

Colorimetric Repeatability (20 readings):

< 0.03 ∆E* CIE L*a*b * on white tile in LAV mode
< 0.07 ∆E* CIE L*a*b* on blue denim tile in LAV mode

Spectral Repeatability: Max 0.20 range between 435 nm and 695 nm

Inter-instrument Agreement:

∆E*< 0.09 CIE L*a*b* (Avg) on BCRA II Tile Set
∆E*< 0.20 CIE L*a*b* (Max) on BCRA II Tile Set

Dimensions:

Height: 32.3 cm (12.7 in.)
Width: 42.0 cm (16.5 in.)
Depth: 49.8 cm (19.6 in.)
Weight: 25.9 kg (57 lbs)

Power:

90 to 250 VAC, 50 to 60 Hz
60 watts passive, 120 watts maximum

Interface: RS-232C serial, 19,200 baud, DB9 (female) terminal

Operating Environment: 4° to 38°C (40° to 100° F), 10 % to 85 % RH, noncondensing

Storage Environment: -21° to 66°C (-5° to 150° F), 10 % to 90 % RH, noncondensing (-5° to 150° F)

Standard Accessories:

Calibrated instrument white tile
Certificate of traceability
Black calibration light trap
Transmittance zero calibration plate
Green diagnostic tile
Wavelength diagnostic filter
Fluorescent standard
Reflectance sample clamp
LAV aperture
MAV aperture
SAV aperture
RS-232C cable
USB-to-Serial adapter
Power cord
EasyMatch QC Software
EasyMatch QC Basic manual

Applications

Building Products

Solid Building Products

Plastics

Injection Molded Plastic

Textiles

Camouflage
